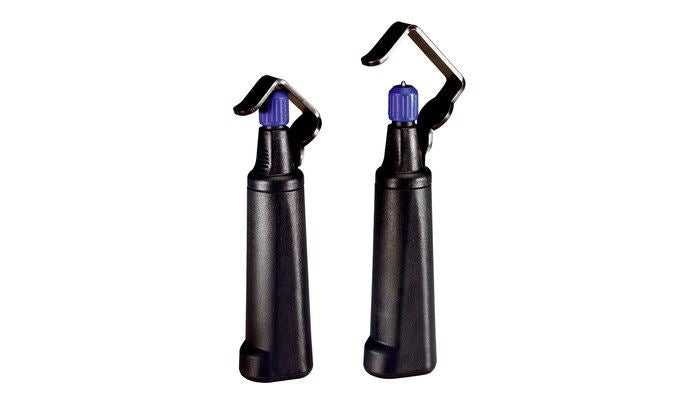

Cable Strip Tool

STAR STRIP - Strip tool for removing multi-core overall cable sheath

Benefi ts
• Large application range thanks to the
interchangeable hooks
• Suitable for circular, longitudinal and spiral
cuts
• High quality of the blade ensures a good
stripping result also for tough insulation
materials
• Robust body, long durability- tested for
more than 100.000 stripping operations
• High ergonomics and user-friendliness
(inter alias due to a lightweight
construction)
Application range
• Adjustable stripping tool for round cables
made with various insulation materials (as
PVC, PTFE, rubber or PUR)
• Through the interchangeable hooks, the
tool can be used for cables with a diameter
of 4.5 - 25 mm and 20 - 40 mm
Product features
• The depth of the blade is adjustable by
rotating the upper part of the tool.
• Specifi c locking positions for circular,
longitudinal or spiral cuts
• The blade automatically returns to its start
position at the end of a stripping process,
thus reducing the possibility of breaking
the blade.

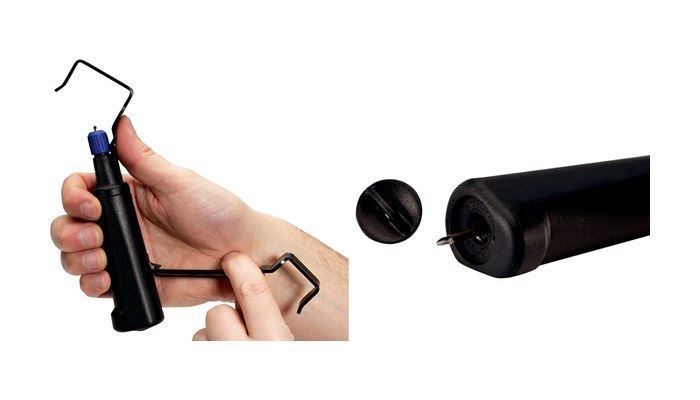

• No special tool is required to replace the
hook (other hook is used for releasing the
assembled hook)
Note
• Spare blades are available and can be
stored in a compartment of the tool
Included
• 61735820: Tool with blade, small and large
hook without spare blade
